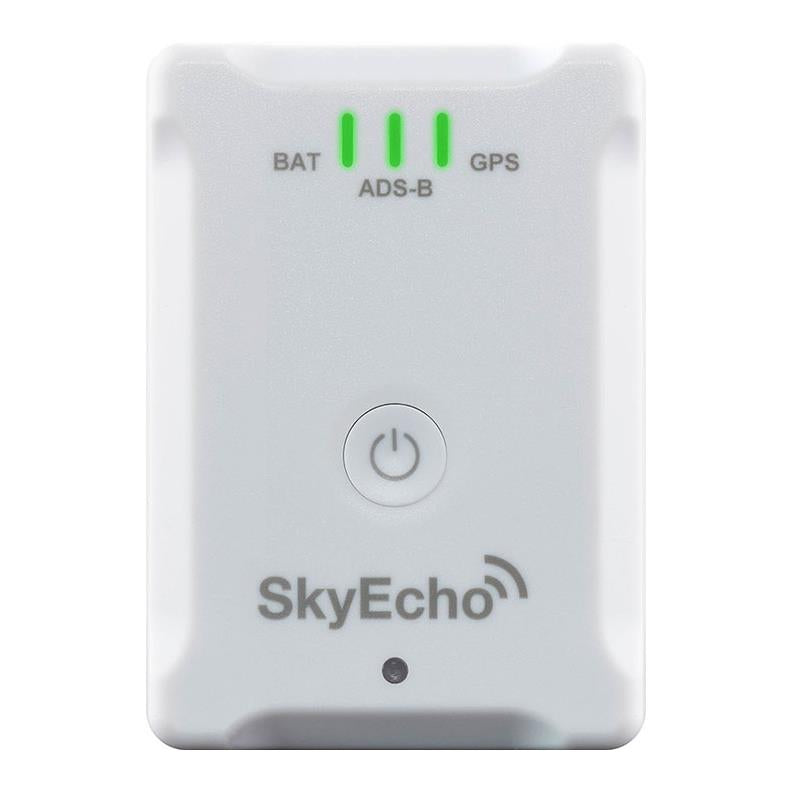

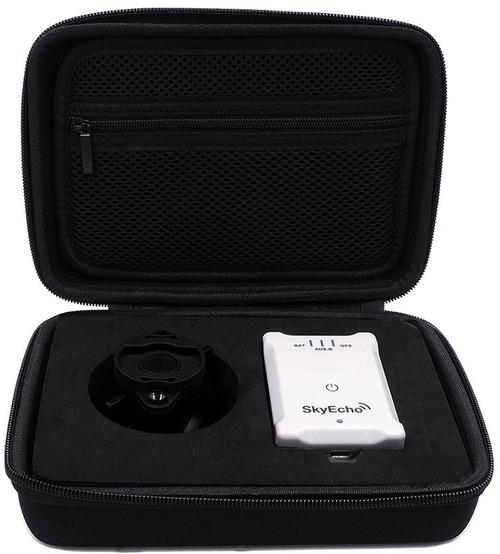

SkyEcho2 ADS-B Transceiver, Portable w/- Case & Mount

SkyEcho2 is the world’s first commercially available portable ADS-B IN and OUT system. Complete with an integrated TSO certified SBAS GPS and barometric altimeter, SkyEcho2 transmits your aircraft location, altitude, and identification via 1090MHz ADS-B, enabling you to be seen by nearby aircraft equipped with an ADS-B receiver. In Australia, the integrated ADS-B IN receiver connects wirelessly to your favourite Electronic Flight Bag (EFB) application adhering to an industry-standard protocol for ADS-B traffic – including OzRunways and AvPlan EFB.

Specification Value Operating Time: 12 hours Operating Power: 3 watts Size: 57x82x30mm Weight: 120 grams SDA/SIL: 1/0 (TSO-C199 GPS) Operating Temp: -45 to 70°C Transmitter Frequency: 1090MHz ±1MHz Transmit Power: 20W Nominal Frequency: DO-260B DF-18 Receiver 1090 Performance: -93 to 0dBm 978 Performance: -103 to 0dBm WAAS GPS Augmentation: SBAS Sensitivity: -167dBm Altimeter Range: -1000 to 60,000ft Interfaces Wi-Fi: 802.11 b/g/n 2.4GHz. 4 simultaneous Connections Ports: USB-C
