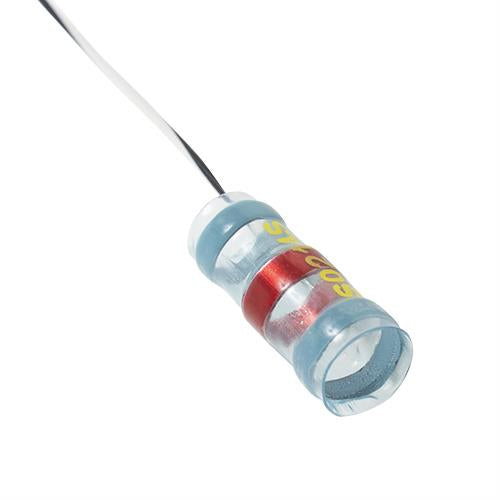

Sumitomo H-ML-14 Immersion Resistant Solder Sleeve, 24 AWG Lead, 0.070 to 0.235 in Cable, HML-14
Enter your postcode to see estimated delivery dates.
Product Info
The Sumitomo H-ML-14 is an immersion-resistant solder termination sleeve (STS) with a pre-installed 24 AWG wire lead. STS devices solder, seal, insulate and strain relieve a connection in one step and are installed with heat.
- Sn63 solder preform with a red thermochromic indicator, eutectic at 183°C, with RMA flux
- Pre-installed wire lead per MIL-W-22759/32-24-90
- Qualified to SAE AS83519/2 and listed on the QPL (Class I)
- Transparent blue sleeve with blue meltable sealing rings
- Convection or infrared heated installation
Tech Spec
Reviews
Own one? Help other pilots by being the first to review this product.
