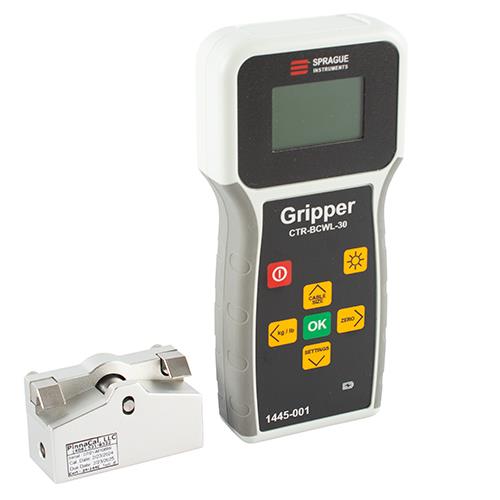

Wireless Bridal Cable Tensiometer, 30lb

Download User Manual:

Bridal Cable Tension Meter Manual (January 2024)

The CTRBCWL30 digital cable tension meter provides technicians a simple method for maintaining correct cable tension in autopilot flight control systems. The small footprint allows CTRBCWL30 to fit into tight areas. The small sensor head and separate handheld display box make it easier to view the measurement readings while adjusting the cable tension. The informative display box screen shows the temperature, cable size, and battery strength. This tensiometer is simple to use and has no extra parts. The unit comes calibrated, certified, and ready to use out of the box. Just turn on the unit and select the correct cable size. The CTRBCWL30 has been designed so local calibration shops can certify their tools using the calibration information that is specified in user manuals. This tensiometer has a 10-30 pound range.

• Supports 1/16, 3/32, 1/8 inch cable sizes
• Selectable units of measurement 0C and 0F
• Compact sensor head fits into tight spaces

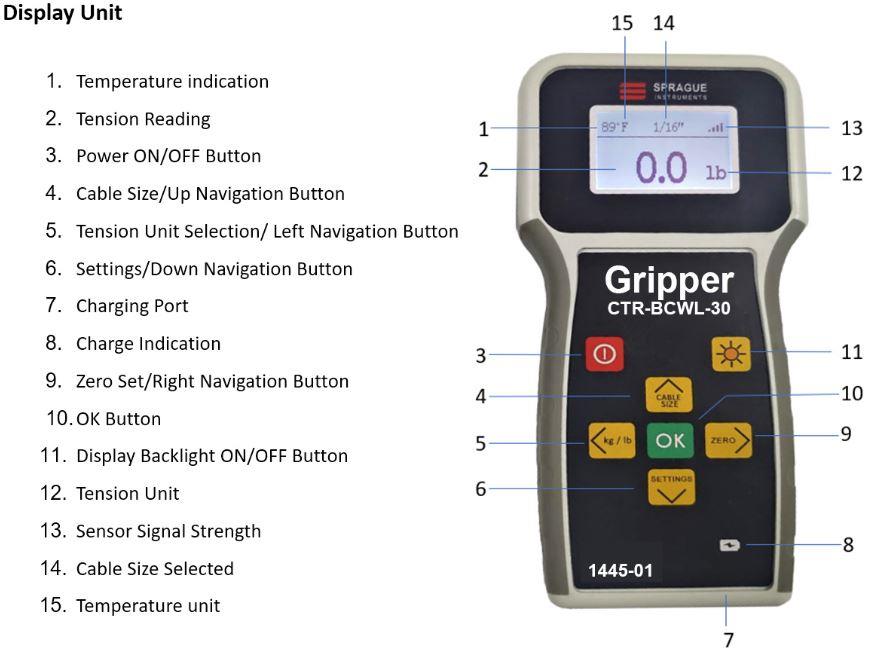

• Display screen shows temperature, cable size, and battery strength
• Works for a range up to 10 meters
• ±3% of Full scale Tolerance
• 10 to 30 pound range
• Back light ON/OFF display option
• Connects wirelessly via Bluetooth
• Carrying case included
