Airfasco AN4 Aircraft Bolt, 1/4-28, 1.781 in Long, 1.312 in Grip, Undrilled, Cadmium Plated, Pack of 50, AN4-16A
Australian delivery only. Shipping calculated at checkout.
Full shipping policyProduct Info
Airfasco AN4-16A is an alloy steel AN hex head airframe bolt with a 1/4-28 UNF-3A thread and yellow cadmium plating. It is the undrilled, non-locking version, with no hole in the head or threads. Sold as a pack of 50.
- Thread length 0.468 in, shank diameter 0.246 to 0.249 in
- Hex 0.428 to 0.440 in across flats, head height 0.140 to 0.172 in
- Heat treated per AMS-2759 to HRC 26 to 32
- Minimum single shear 3,680 lb, minimum yield 3,130 lb
- Head marked with the maker's AFC logo and X alloy steel grade mark
- NSN 5306-00-151-1418
Tech Spec
Reviews
Own one? Help other pilots by being the first to review this product.
WRITE A REVIEWMore in AN Bolts
View all 30
Pilot Gear Drilled Head Hex Bolt, 1/4-20 x 29/32 in, Cadmium Plated Steel, Pack of 5, MS20074-04-07
€42,95 EUR
Pilot Gear AN4 Hex Head Bolt, Cadmium Plated Steel, 1/4-28, AN4-27
€11,95 EUR
Pilot Gear Hex Head Bolt, Cadmium Plated Steel, 1/4-28, Pack of 5, AN4-23
€17,95 EUR
Airfasco AN6 Aircraft Bolt, 3/8-24, 2.578 in Long, 1.938 in Grip, Undrilled, Cadmium Plated, Pack of 10, AN6-24A
€46,95 EUR
Pilot Gear AN23 Clevis Bolt, Cadmium Plated Steel, #10-32, 9/16 in Grip, AN23-14
€11,95 EUR
Airfasco AN3 Hex Head Bolt, Undrilled, Cadmium Plated, 10-32 UNF, 1.875 in Grip, 2.281 in Length, Pack of 10, AN3-22A
€21,95 EUR

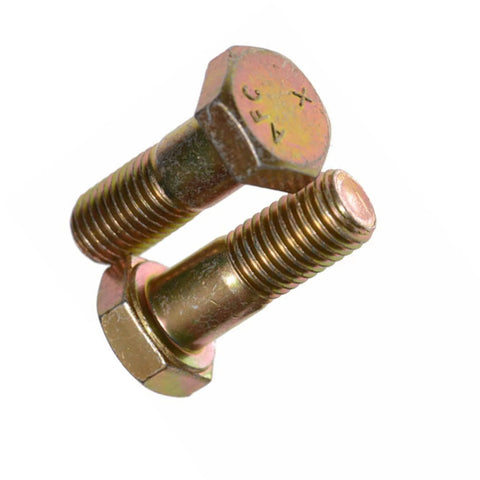

Airfasco AN5 Aircraft Bolt, 5/16-24, 0.844 in Long, 0.313 in Grip, Undrilled, Cadmium Plated, Pack of 10, AN5-6A
