Can Bus Wire 24G, 2 Conductor Twinax, 120 Ohm, White

GARMIN recommends the use of CAN24TST120 cable to interface the Can Bus on G3X, G5, GMU11, GAD29B, GFC500, GMC507 and GSA28. Note: Please refer to GARMIN’s STC Installation Manual for specific details.

Maxflight™ high speed, digital twinax, cable is designed for high-speed HDMI, DVI, USB, Firewire, and CAN bus data applications are required. This light weight data bus cable meets FAR 25.853 flammability and Boeing/Airbus smoke and toxicity requirements.

• Exceptional electrical and mechanical performance
• Operating performance from -55°C to as high as 200°C
• Meets the requirements of aerospace and other harsh environments including FAR 25.853 flammability and Boeing/Airbus smoke and toxicity requirements
• Multiple configurations to meet the needs of almost any application
• Lightweight versions to address weight and space requirements
• Advanced technologies such as Bonded-Pairs and an innovative X-Web reduces cross talk and ensures installable performance

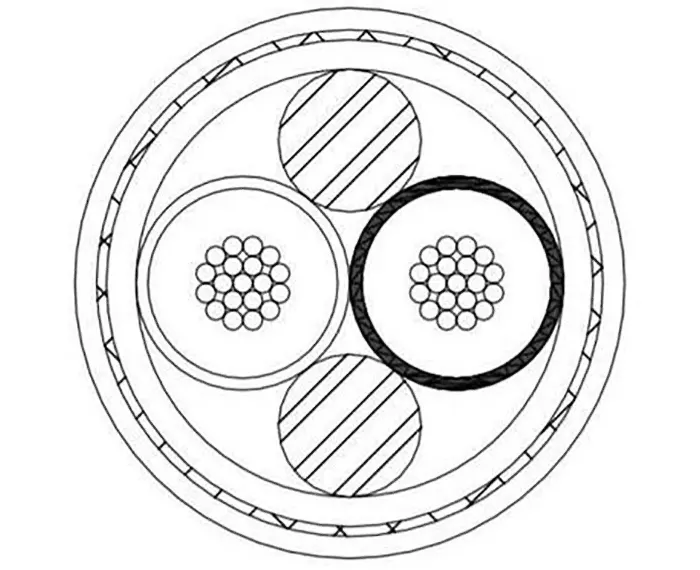

CAN24TST120 a 24AWG 2 conductor Can Bus Cable, made by Amphenol, rated at 120 Ohms.

CAN24TST120 is different from CAN24TST120-CIT as the print is different. This version is for Boeing, the -CIT version is for Bombardier.

Weight: 13.5 +/- 2.0 lbs/1,000 ft

Operating Temperature: -65 to 150 deg C
