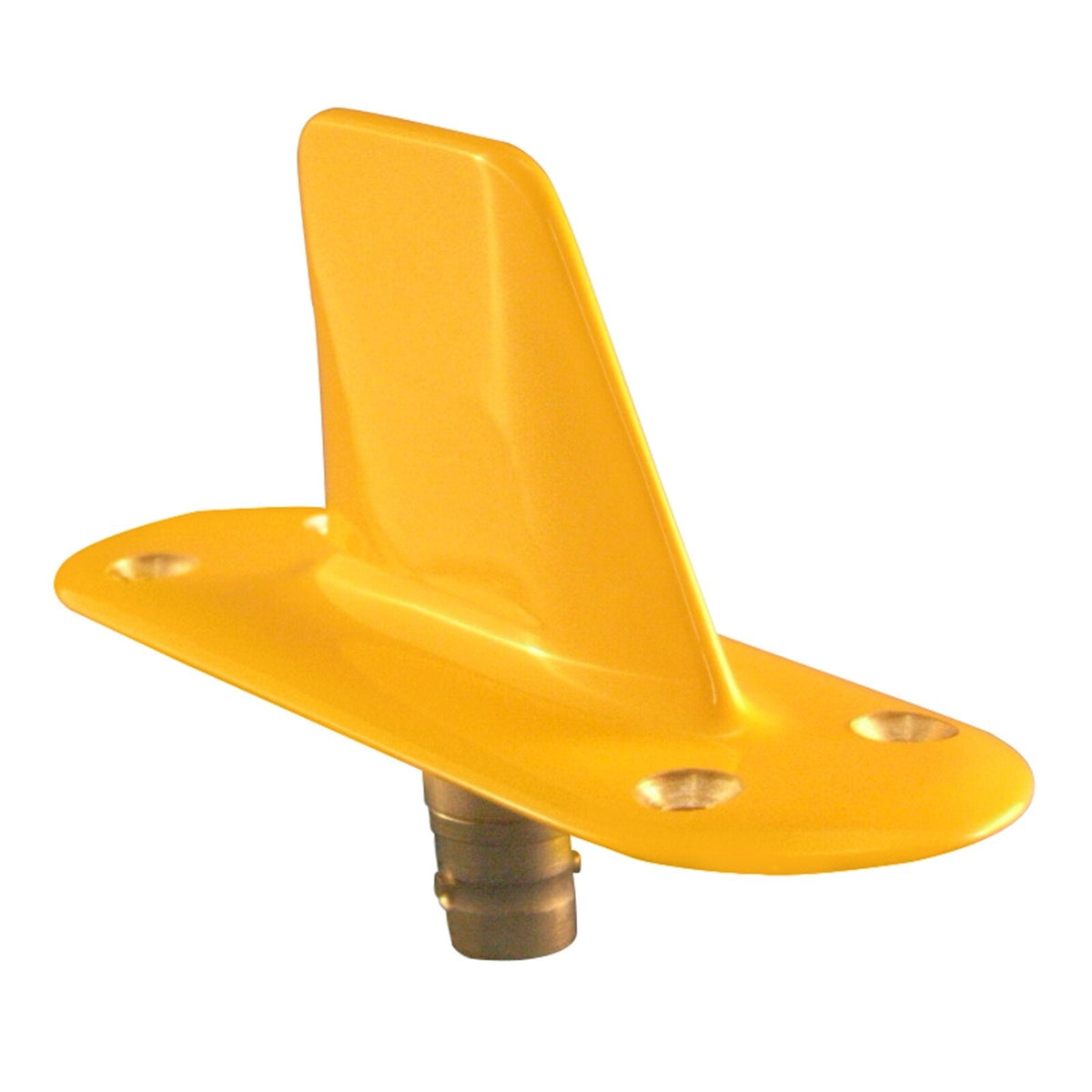

L3Harris 1601354-001 L-Band Antenna, 960 to 1220 MHz, 4-Hole Mount, Yellow, DM1601354-001
Australian delivery only. Shipping calculated at checkout.
Full shipping policyProduct Info
The L3Harris 1601354 is a vertically polarised L-Band antenna covering 960 to 1220 MHz, designed to Bureau of Civil Aviation Security (BCAS) characteristics. It mounts directly to NI50-2 mounting holes with no airframe modification, and some installations may require an adapter. Models are available directly interchangeable with the NI50-series to facilitate updates to BCAS, ASAS or TCAS.
- Meets ARINC 709-1 (Distance Measuring Equipment), 718 (Air Traffic Control Transponder) and 730 (ASAS) characteristics
- Adjusted omnidirectional pattern with forward directivity; forward gain approximates a quarter wave stub, rearward gain within 2.5 dB below forward gain
- Completely sealed construction prevents moisture incursion
- Lightning protection circuits prevent damage to the antenna and safeguard electronic equipment
- High side-load strength guards against breakage by ground handling gear
- Part number 1601354-001 is the yellow finish; 1601354-002 is orange
