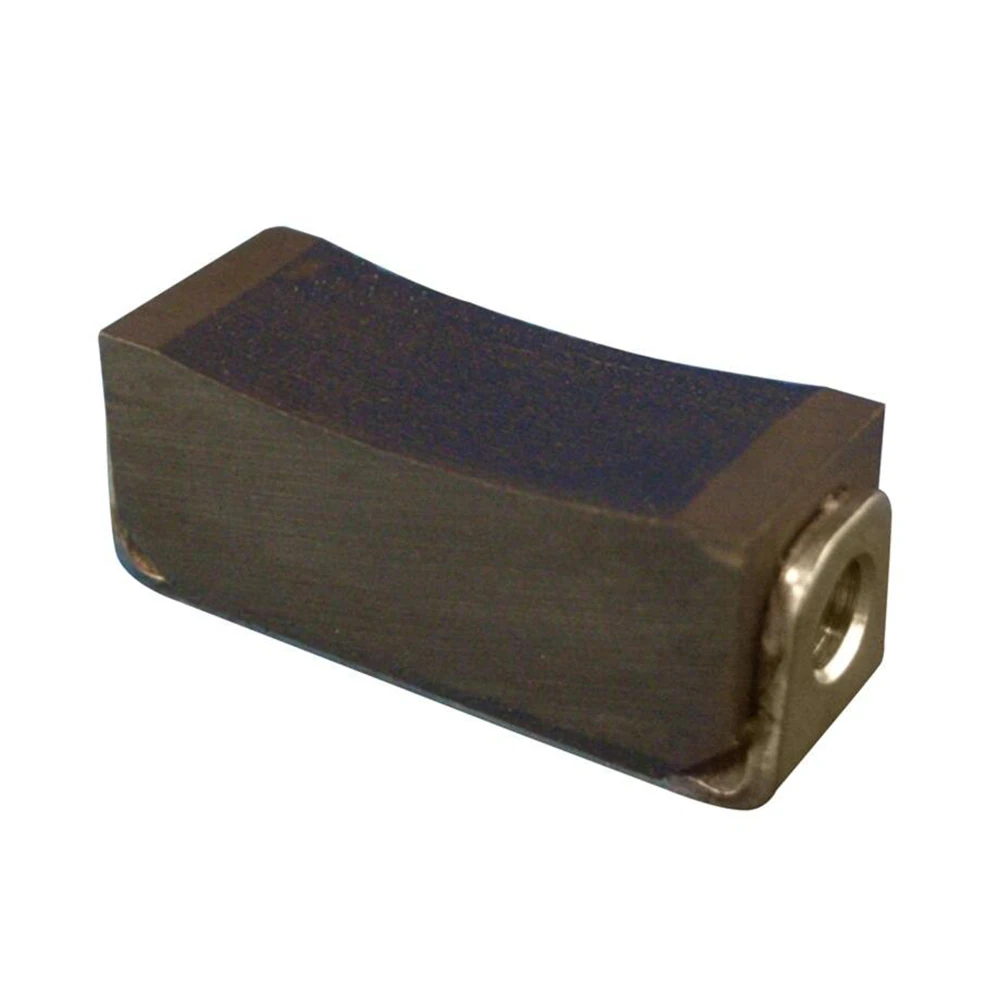

The Hartzell A-3026 Carbon Block Unit is the replaceable carbon block in the A-3044 Beta Feedback Block Assembly on Hartzell turbine propellers. The assembly installs into the beta ring as part of the feedback mechanism that communicates blade angle position to the beta valve in reverse.
- Assembled with the yoke unit, clevis pin, T-head cotter pin and snap ring
- Fitted at 0.001 inch (0.03 mm) minimum side clearance in the beta ring, set by sanding the block sides
- Hartzell replacement limit: side clearance over 0.010 inch (0.25 mm)
- Hartzell specifies a new clevis pin with each block replacement
技术规格
评价
更多 Systems & Components
查看全部 6 项

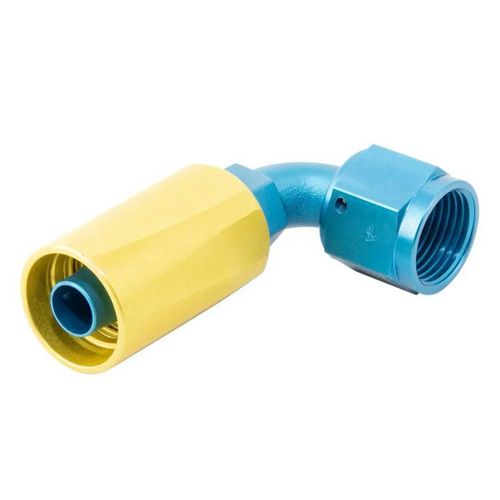

Eaton Aeroquip 980005-8D Flared Adapter Assembly
