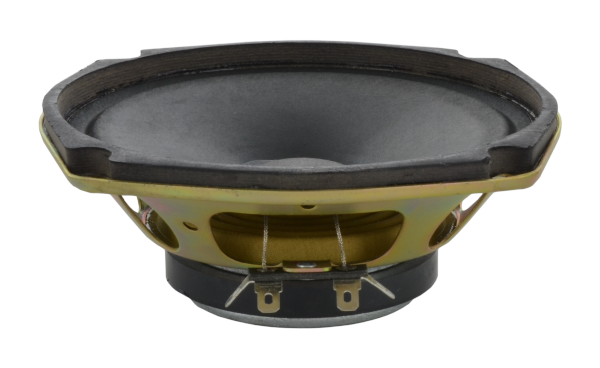

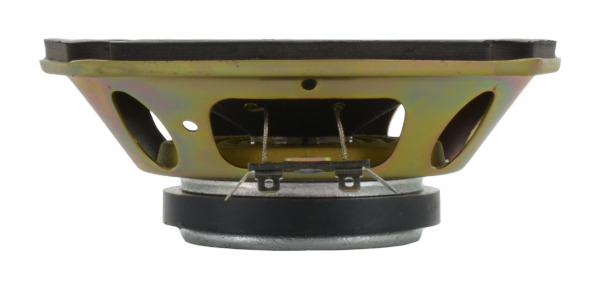

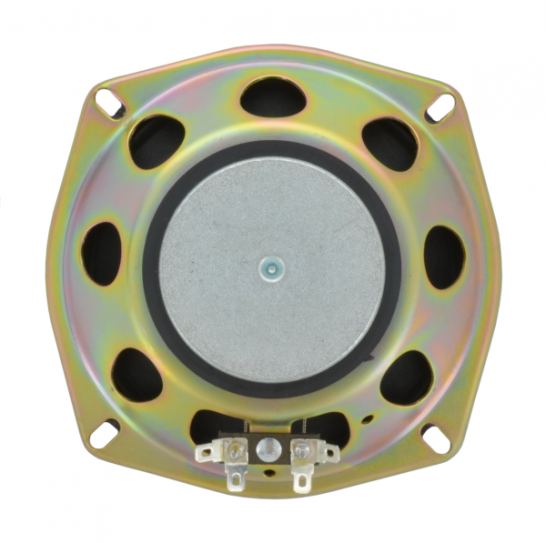

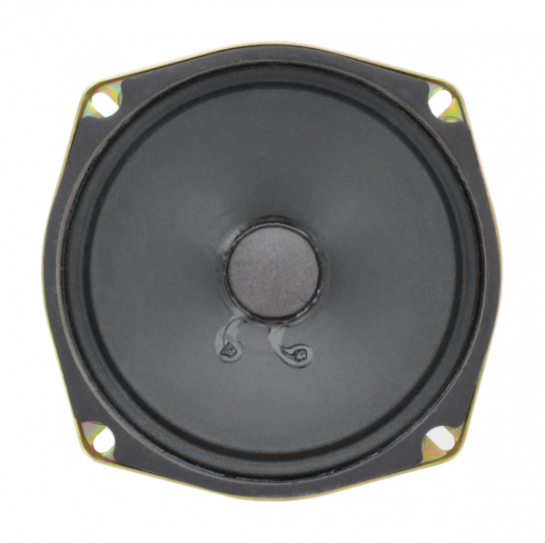

Aircraft Speaker, 5.25in (133mm) Round
$337.50
inc. GST
In Stock
Ships from Australia
Delivery Options
See AllOrder before 3pm AEST & have it dispatched today.
AusPost Standard
Delivery Estimate
—
AusPost Express
Delivery Estimate
—
International
Delivery Estimate
Click See All for delivery estimates
Dates provided are estimates to major cities & not guarantees*
Security & Privacy
We do not store or have access to your credit card details.
Delivery Estimates
Orders placed by 3pm AEST Monday–Friday ship the same day. Weekend orders ship Monday. Freight costs are calculated at checkout.
AusPost Standard
Metro Area
—
Rural Area
—
AusPost Express
Metro Area
—
Rural Area
—
Express Post typically arrives next business day in major Australian cities for orders placed before our cut-off.
Not available for orders including aerosols or DG’s.
International
New Zealand
2-7 business days
Asia Pacific
3-8 business days
US & Canada
3-9 business days
UK & Europe
3-7 business days
Rest of the World
7-21 business days
- Delivery dates are estimates, not guarantees.
- Bulky items may be shipped via TNT Road express.
- See our full shipping policy here.
No se pudo cargar la disponibilidad de recogida
4 payments of AU $0.00
i
Description
The A52FC delivers high-quality audio as a commercial and general aviation replacement speaker. This 5.25" wide range driver features a flame-retardant treated cone, a space-saving design for tight enclosures, excellent voice clarity, and top performance under tough altitude and temperature conditions.
- Wide range speaker
- 5.25" (133 mm) steel basket diameter
- 12 watt, 4 ohm, 90 dB SPL
- 1" copper voice coil, Kapton former
- Ferrite magnet, flame retardant cone
More Information
Brand Name MISCO OEM Speaker Type Wide Range Shape of Speaker Other Size, Nominal (inch & mm) 5" (127 mm) Environment Indoor Application Aerospace RoHS Compliant No Rated Impedance (Ω) 4 Rated Power IEC268-5 (W) 12 Watts Program Power (W) 24 Sensitivity (dB SPL) ¹ 90 Frequency Range (Hz) 80 - 10,000 Resonant Frequency (Fs) (Hz) +/- 15% 110 Nominal Impedance (Z) (Ω) 4 Basket Type Stamped steel Terminal Size (mm) 5.2 x 0.5 Voice Coil Diameter (mm) 25.4 Voice Coil Wire Material Copper Voice Coil Former Material Kapton Magnet Material Ferrite Magnet Weight (g) 136.08 Cone Body Material Flame retardant paper Dust Cap Material Flame retardant paper Net Weight (kg) 0.52 Technical Notes ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance
Specifications
| Category | Suministros de aeronaves |
|---|---|
| SKU | A52FC-I |
| Shipping Weight | 0.5 kg |
The A52FC delivers high-quality audio as a commercial and general aviation replacement speaker. This 5.25" wide range driver features a flame-retardant treated cone, a space-saving design for tight enclosures, excellent voice clarity, and top performance under tough altitude and temperature conditions.
- Wide range speaker
- 5.25" (133 mm) steel basket diameter
- 12 watt, 4 ohm, 90 dB SPL
- 1" copper voice coil, Kapton former
- Ferrite magnet, flame retardant cone
More Information
Brand Name MISCO OEM Speaker Type Wide Range Shape of Speaker Other Size, Nominal (inch & mm) 5" (127 mm) Environment Indoor Application Aerospace RoHS Compliant No Rated Impedance (Ω) 4 Rated Power IEC268-5 (W) 12 Watts Program Power (W) 24 Sensitivity (dB SPL) ¹ 90 Frequency Range (Hz) 80 - 10,000 Resonant Frequency (Fs) (Hz) +/- 15% 110 Nominal Impedance (Z) (Ω) 4 Basket Type Stamped steel Terminal Size (mm) 5.2 x 0.5 Voice Coil Diameter (mm) 25.4 Voice Coil Wire Material Copper Voice Coil Former Material Kapton Magnet Material Ferrite Magnet Weight (g) 136.08 Cone Body Material Flame retardant paper Dust Cap Material Flame retardant paper Net Weight (kg) 0.52 Technical Notes ¹ Sensitivity is measured with 2.83 volt input, measured on-axis at 1 meter distance| Category | Suministros de aeronaves |
|---|---|
| SKU | A52FC-I |
| Shipping Weight | 0.5 kg |
