Gill 7638-44 LT Sealed Lead Acid Aircraft Battery, 24 Volt 44Ah

Name: Gill 7638-44 LT Sealed Lead Acid Aircraft Battery, 24 Volt 44Ah
Brand: Gill
SKU: 7638-44
Price: 3957.58 EUR
Availability: OutOfStock

€3.957,58EUR

✕ Εξαντλημένο ✓ Αποστολή από την Αυστραλία

Περισσότερες επιλογές πληρωμής

Γνήσια εξαρτήματα Πλήρης ιχνηλασιμότητα

Περιλαμβάνονται πιστοποιητικά CoC κατασκευαστή

TNT Express Παρακολούθηση μέχρι την πόρτα

Τρόπος παραλαβής

✕Προς το παρόν μη διαθέσιμο

Πλήρης πολιτική αποστολής

Πληροφορίες προϊόντος Τεχνικά στοιχεία Κριτικές Προτεινόμενα προϊόντα

Πληροφορίες προϊόντος

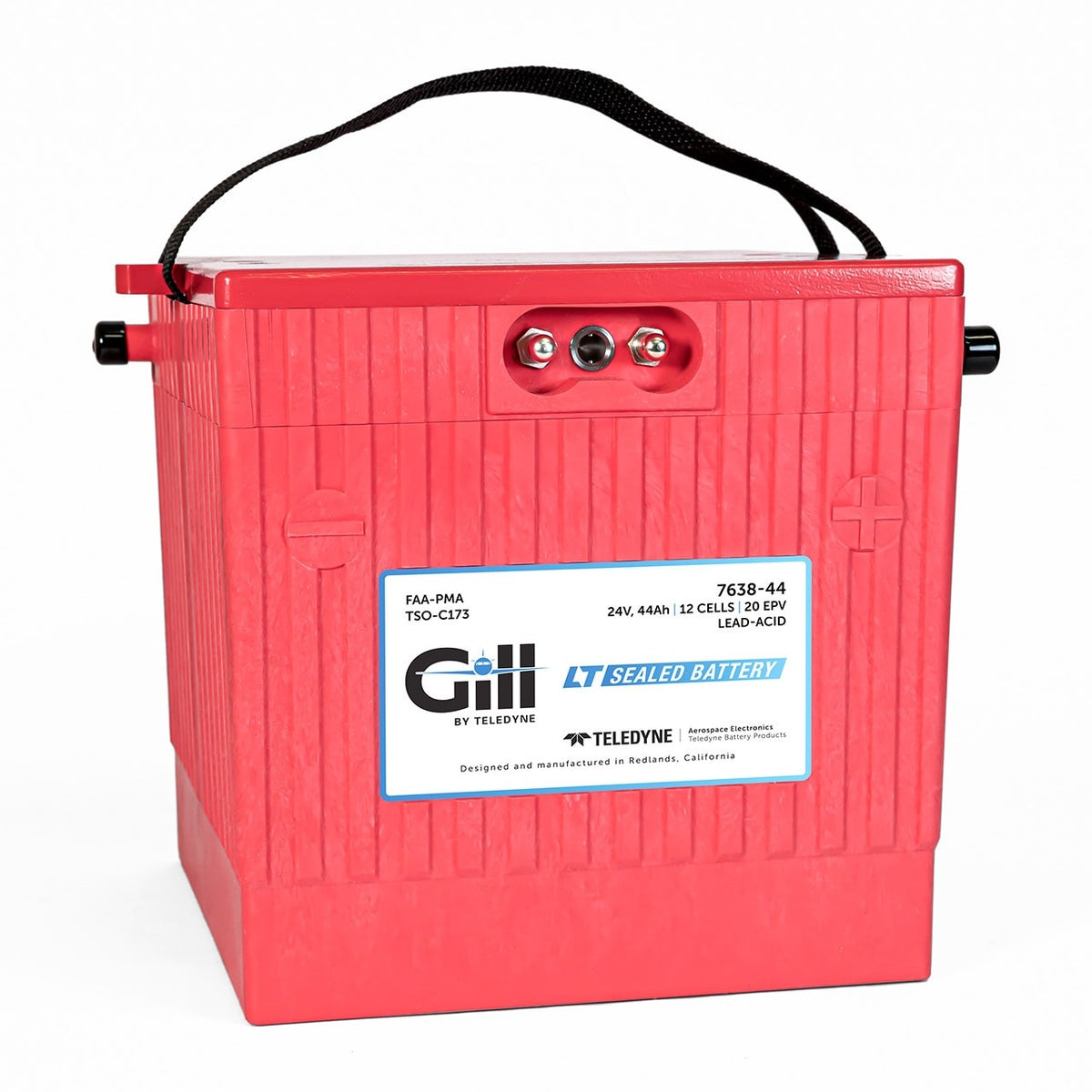

The Gill 7638-44 is a 24 volt, 44 Ah sealed valve regulated lead acid (VRLA) aircraft battery made by Teledyne Battery Products with LT Technology. Gill lists applications including the Airbus Helicopters EC135, ATR42 and ATR72, Bell 212 and 412, Cessna 208 and Pilatus PC-12. Most listed types need the STC that Gill names for that type, as shown in the specifications.

Sealed, non-spillable and maintenance free
FAA-PMA approved, TSO authorised and DO-160E tested
18 month / 1800 hour capacity check inspection interval

Τεχνικά στοιχεία

Gill 7638-44 LT Sealed Lead Acid Aircraft Battery, 24 Volt 44Ah

Κωδικός εξαρτήματος κατασκευαστή

7638-44

Nominal Voltage

24 V

One Hour Capacity (C1)

44 Ah

30 Minute Emergency Rate (C/2)

70 A

Cells

Power Performance (Ipp / Ipr)

23°C (75°F): Ipp 1857 A, Ipr 1247 A; -18°C (0°F): Ipp 1677 A, Ipr 1051 A; -30°C (-22°F): Ipp 1411 A, Ipr 948 A

Βάρος

86 lb (39 kg)

Διαστάσεις

12.10 x 10.45 x 10.12 in (307.24 x 265.54 x 257.15 mm), maximum overall per Gill drawing

Approvals

FAA-PMA; TSO authorised (TSO-C173 on label); DO-160E tested

Εφαρμογές σε αεροσκάφη

STC numbers as Gill lists them (NR = no STC required). Airbus Helicopters: EC135 P1, EC135 P2, EC135 P2+, EC135 T1, EC135 T2, EC135 T2+ (SR00842DE); MBB-BK 117C-2 (EC145) (SR00843DE). ATR: ATR42-200, ATR42-300, ATR42-320, ATR42-500, ATR72-101, ATR72-102, ATR72-201, ATR72-202, ATR72-211, ATR72-212, ATR72-212A (ST02886NY). Bell: 204B, 205A, 205A-1 (SH2186SO); 212, 412, 412EP (SH1186SO); 205B, 222U (NR). Daher (Socata): TBM-700 (NR). Dassault: Fan Jet Falcon C, D, E, F (SA1215SO). De Havilland Canada: DHC-8-100, DHC-8-200, DHC-8-300 Series (ST01562NY). Embraer: EMB-110P1, EMB-110P2 (SA1167SO). Gulfstream: G-159 (SA5525NM); G-1159 (NR). Israel Aircraft Industries: 1121, 1121A, 1121B (SA1213SO); 1123, 1124 (SA1214SO). Learjet: 23, 24, 24A, 24B, 24B-A, 24C, 24D, 24D-A, 24E, 24F, 24F-A, 25, 25A, 25B, 25C, 25D, 25F, 28, 29, 35, 35A, 36A (ST1033SO); 31, 31A, 55, 55B, 55C, 60 (NR). Lockheed Martin: 1329-23A, 1329-23D, 1329-23E (ST1032SO). Mitsubishi: MU-2B, MU-2B-10, -15, -20, -25, -26, -26A, -30, -35, -36, -36A, -40, -60 (SA1042SO). Pilatus: PC-12, PC-12/45, PC-12/47, PC-12/47E (SA00867DE). Piper: PA-31T, PA-31T1, PA-31T2 Series, PA-42, PA-42-720 Series (SA1728S0). Sabreliner: NA265, NA265-20, -30, -40, -60, -65, -70, -80 (ST1031S0). Sikorsky: S-76A, S-76C (SR01601NY-D); S-76B (NR). Textron Aviation (Cessna): 208, 208A, 208B (ST01117LA); 425 (SA2245S0); 500, 501, 550, S550, 551, 560 (SA1051SO); 525, 525A (SA01203LA); 650 Series (ST01185LA); 560XL (NR). Textron Aviation (Beechcraft): 65-90, 65-A90, 65-A90-4, 65-A90-1 (JU-21A, U-21A, RU-21A, RU-21D, U-21G), 65-A90-4 (RU-21E, RU-21H), B90, C90, C90A, C90GT, C90GTi, E90, 99, A100 (SA1017SO); B100 (SA1018SO); 200 (A100-1 (U-21J)), 200C, 200CT, 200T, A200 (C-12A, C-12C), A200CT (C-12D, FWC-12D, RC-12D, C-12F, RC-12G, RG-12H, RC-12K, RC-12P), B200, B200C (C-12R, UC-12F, UC-12M, C-12FR), B200CT, B200T, 300, 300LW, B300 (350, 350i), B300C (350C) (SA1016SO); 400A S/N RK-98 and after, Hawker 1000, MU-300-10, 400, 400T (NR); 99A, 100, A99, A99A, A100, A100A (SA894S0); C90, E90, B99, F90 (SA1013S0); 200, 200C, 200CT, 200T, B200, B200C, B200CT, B200T, B200GT, B200CGT, 300, B300 (350, 350i), B300C (350C), 390, C90, C90A, C90GT, E90, 1900 (SA00889DE); 1900C, 1900D (SA02410LA). Twin Commander: 680T, 680V, 680W (SA887S0); 690, 690A (SA1059SO).

Μάρκα

Gill

SKU

7638-44

Βάρος αποστολής

90.6 lb
