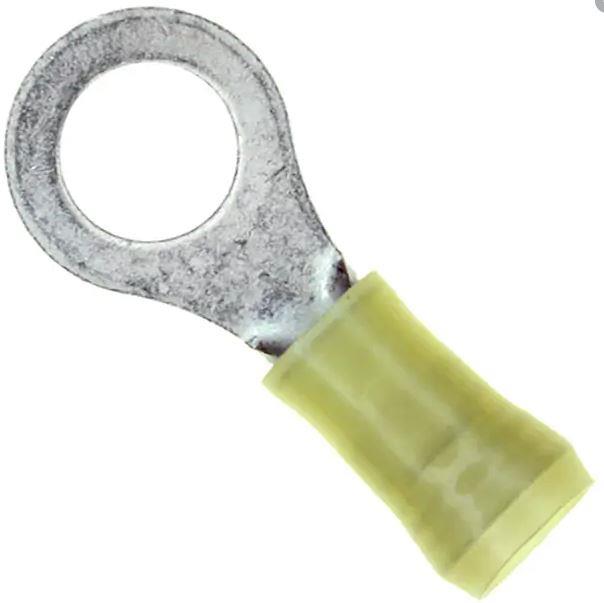

Terminal Cincin PIDG 12-10G, 5/16, Kuning
Masukkan kode pos untuk melihat perkiraan tanggal tiba.
Info produk
PIDG terminals and splices (Pre-Insulated Diamond Grip) are designed for complete and uniform reliability in the most difficult circuit environments.
Features
- Nylon or PVC insulation, tin plating
- Copper insulation support sleeve
- Wire range: 26 AWG - 10 AWG (0.12 – 6.64 mm2)
- Operating Voltage: 300V
- Temperature Rating: standard 105°C max., PVF2 150°C max (also available with PTFE insulation and Nickel plating up to 288°C max)
- UL Listed, CSA certified
- Many PIDG terminals and splices are Military Approved: ASM7928
Benefits
- Vibration resistant; wire can bend any direction without damage
- Insulation repels hydrocarbons (greases, oils, etc.) and has high dielectric strength.
- Serrations in wire barrel give maximum electrical contact and tensile strength with the conductor
- Funneled wire entry prevents turned back wire strands and permits rapid wire insertion during high speed production
- Insulation sleeves and corresponding tooling are color-coded by wire size for easier identification
- “C” crimp specially designed by TE for rugged use
